User Interface

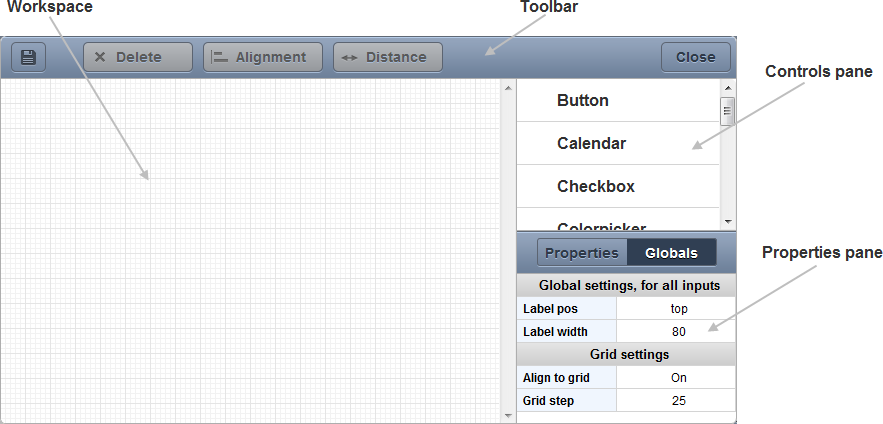

By default, form designer looks like:

As well as the parent designer, it contains 4 parts:

• Workspace - the working space. While you add or delete elements, alter their properties - all the changes is presented there.


• Controls pane - a list of available controls. Exactly from here you can add controls to form.


• Properties pane - displays properties of the selected control and provides editable text fields for their editing.
  Top bar contains 2 tabs:
  • Properties - allows to change common properties of the currently selected control.
  • Globals - allows to affect all controls placed on workspace.


• Toolbar - provides functionality for locating controls and saving/cancelling the made configuration.
  Contains 4 buttons:
  • - allows to align selected control(s).
  • - allows to set the same distance between several selected controls.
  • - lets to delete a control.
  • - closes the window. Doesn't save made changes.
  • - lets to save the current configuration and move it to the workspace of the main (parent) designer.
